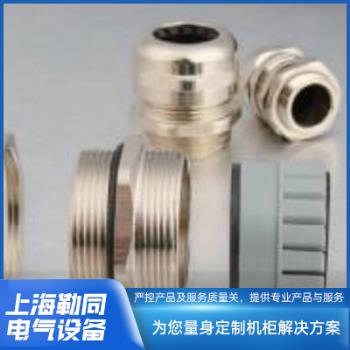

金属电缆防水夹紧接头
2024/4/7
 |
材料：黄铜镀镍 夹紧件：尼龙（pa） 密封件材料：丁腈橡胶 温度范围：-40℃到+100℃短时可达+120℃ 防护等级：IP68 Material:Nickelplatedbrass Clamping:Nylon(pa) Sealingstripmaterial:NBR Temperaturerange:-40℃to+100℃ Theinstanttemperaturecanreach+120℃. Protectiongrade:IP68 |
|
序号 Item No. |
订货号 普通PG制螺纹
|
卡口范围 Bayonet
|
AG外径
|
GL mm |
H mm |
|
1 |
TPG7 |
3~6 |
12.5 |
6 |
19 |
|
2 |
TPG9 |
4~8 |
15.2 |
7 |
20 |
|
3 |
TPG11 |
6~10 |
18.6 |
8 |
21 |
|
4 |
TPG13.5 |
6~10 |
20.4 |
8 |
22 |
|
5 |
TPG13.5 |
8~10 |
20.4 |
8 |
22 |
|
6 |
TPG16 |
8~12 |
22.5 |
9 |
23 |
|
7 |
TPG16 |
10~14 |
22.5 |
10 |
23 |
|
8 |
TPG21 |
13~18 |
28.3 |
11 |
25 |
|
9 |
TPG29 |
18~25 |
37.0 |
11 |
29 |
|
10 |
TPG36 |
22~32 |
47.0 |
13 |
35 |
|
11 |
TPG42 |
32~38 |
54..0 |
14 |
37 |
|
12 |
TPG48 |
37~44 |
59.3 |
14 |
38 |
|
序号 Item No |
订货号 普通公制螺纹
|
卡口范围 Bayonet
|
AG外径 AG ODmm |
GL mm |
H mm |
|
1 |
TM12x1.5 |
3~6 |
12 |
6 |
19 |
|
2 |
TM14x1.5 |
3~6 |
14 |
6 |
19 |
|
3 |
TM12x1.5 |
4~8 |
16 |
7 |
20 |
|
4 |
TM16x1.5 |
6~10 |
18 |
8 |
21 |
|
5 |
TM18x1.5 |
6~10 |
20 |
8 |
22 |
|
6 |
TM20x1.5 |
8~12 |
20 |
8 |
22 |
|
7 |
TM22x1.5 |
8~12 |
22 |
8 |
22 |
|
8 |
TM22x1.5 |
10~14 |
22 |
9 |
22 |
|
9 |
TM24x1.5 |
10~14 |
24 |
10 |
23 |
|
10 |
TM27x2 |
13~18 |
27 |
11 |
25 |
|
11 |
TM30x2 |
13~18 |
30 |
11 |
25 |
|
12 |
TM33x2 |
15~22 |
33 |
11 |
28 |
|
13 |
TM36x2 |
18~25 |
36 |
11 |
29 |
|
14 |
TM42x2 |
22~28 |
42 |
12 |
29 |
|
15 |
TM48x2 |
25~32 |
48 |
13 |
35 |
|
16 |
TM54x2 |
32~38 |
54 |
14 |
37 |
|
17 |
TM60x2 |
37~44 |
60 |
14 |
38 |
|
18 |
TM64x2 |
37~44 |
64 |
14 |
38 |
*可定制非标产品 *Nonstandard products can be customization
