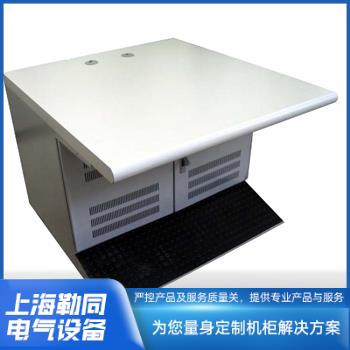

AP操作平台系列

2024/4/7

材料

Materia

冷轧钢板, 高品质防火木板

Cold rolled steel sheet, High quality ﬁre wood

表面处理

Surface

treatment

台体磷化底涂处理，外部为粉末涂层，颜色可分RAL7032和 RAL7035两种织纹

Cabinet is applied with etch

primer and covered with powder coating on the outer side. Two color textures, RAL7032 and

RAL7035, are available.

防护等级

Protection

grade

IP54(按GB4205-1993)

IP54 (in accordance with

GB4205-1993)

标准配置

Standard

conﬁguration

前单(双)门、操作台面、柜体、

固定托板、门锁、脚踏板(可选)、密封条

Front single (dual) door,

operating console board,

cabinet body, Fixed pallet, door lock, Pedal board (optional),

sealing strips and

材料厚度

Material

thickness

箱体: 1.5mm 门板: 2.0mm 操

作台面: 25mm

固定托板: 1.5mm脚踏板: 1.5mm

Cabinet body: 1.5mm

Door plate: 2.0mm

Operation console board:25mm

Fixed pallet: 1.5mm

Pedal board: 1.5mm

产品特点 Features of products
● 人性化的结构设计美观大方
● 操作台面采用高品质防火木板，体现台体高端品质及人性化
● 前单(双)门离地面高，约为25mm，让开门顺畅和便利
● 暗铰链，不会突出在门框内和柜中，易于安装，脱卸门板也便捷
● PU发泡技术让台体的密封性

AP系列订货规格表
APseries order specification table

AP系列尺寸规格表
APseries dimension table
